Level 2 EV Charger 240V 40A
LEVEL 2 FAST CHARGER FOR RESIDENTIAL
Green Science Home Level 2 EV Charging Station - Available with NEMA 14-50 Plug or NEMA 6-50 Plug or Hardwired
- Fit all EVs and PHEVS:
- Green Science NEMA 14-50 Plug or NEMA 6-50 pLUG is a simple, powerful, heavy-duty and portable Electric Vehicle Charging Station which is suitable for normal and cold weather. Compatible with all EVs and PHEVs sold in North America.
- Safe and Reliable :
- Manufacturerd according to UL standard. IP67 (Water resistant), Fire resistant. Over Current, Over Voltage, Under Voltage, Missing Diode, Ground Fault, and Over Temperature Protections.
- Smart App Control :
- More power and output configurations for your money by Smart Life App. Fast charging and adjustable amperage: 32A to 48A.
- Easy to install and use:
- Save hundreds of dollars on installation – just install a simple 14-50R outlet and you are ready to plug in your EV Charger. Easily transportable. Simple to remove from the mounting bracket and transport between different locations. NEMA-4 water and air tight PC enclosure.
RFID / APP Control
Users can choose to initiate charging with an RFID card or operate it remotely with a mobile app, which also includes adjusting the current level, timer switching, and viewing historical charging records.
Works with Any EV
Green Science EV Charger can charge any EV, including your next one. It uses a universal SAE J1772 connector and has been tested with al top-selling models: Chevrolet Bolt EV, Chevy Volt, Hyundai Kona, Kia Niro, Nissan LEAF, Tesla, Toyota Prius Prime and more.

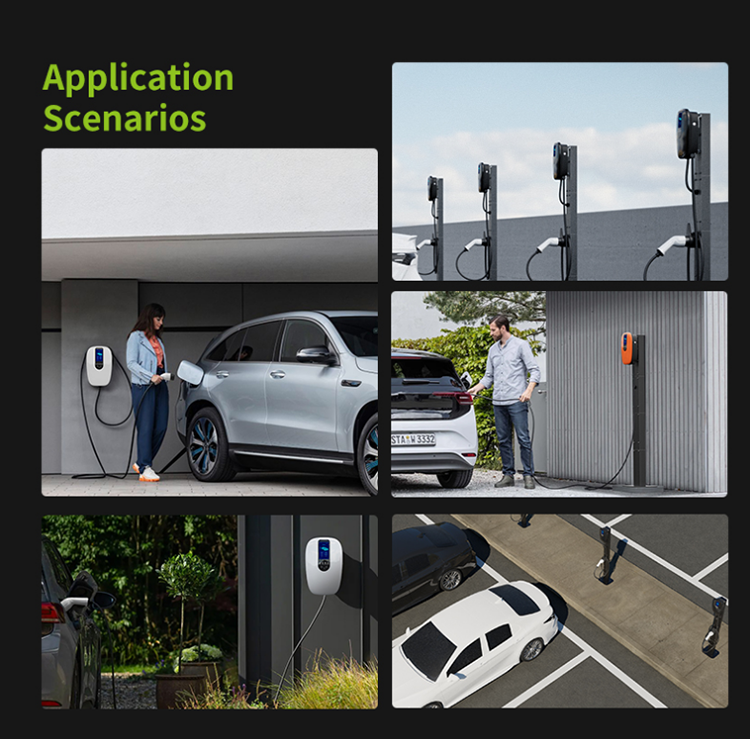

Wall-mounted or Pedestal-mounted
Easy installation, meeting different working senarios.
TECHNICAL DATA
| Model | GS-AC32-B01 | GS-AC40-B01 | GS-AC48-B01 |
| Power Supply | L1+L2+Ground | ||
| Rated Voltage | 240V AC Level 2 | ||
| Rated Current | 32A | 40A | 48A |
| Frequncy | 60Hz | 60Hz | 60Hz |
| Rated Power | 7.5kw | 10kw | 11.5kw |
| Charging Connector | SAE J1772 Type 1 | ||
| Cable Length | 11.48 ft.(3.5m) 16.4ft. (5m) or 24.6ft(7.5m) | ||
| Input Power Cable | NEMA 14-50 or NEMA 6-50 or Hardwired | ||
| Enclosure | PC 940A +ABS | ||
| Control Mode | Plug& Play /RFID Card/App | ||
| Emergency Stop | Yes | ||
| Internet | WIFI /Bluetooth/RJ45/4G (Optional) | ||
| Protocol | OCPP 1.6J | ||
| Energy Meter | Optional | ||
| IP Protection | NEMA Type 4 | ||
| RCD | CCID 20 | ||
| Impact Protection | IK10 | ||
| Electric Protection | Over Current Protection, Residual current protection, Ground Protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection |
||
| Certification | FCC | ||
| Manufactured Standard | SAE J1772, UL2231, and UL 2594 | ||
Dynamic load balancing Management
The dynamic load balancing EV charger ensures that the overall energy balance of the system is maintained. The energy balance is determined by the charging power and the charging current. The charging power of the dynamic load balancing EV charger is determined by the current flowing through it. It saves energy by adapting the charging capacity to the current demand.
In a more complicated situation, if many EV chargers charge simultaneously, the EV chargers may consume a large amount of energy from the grid. This sudden addition of power may cause the power grid to become overloaded. The dynamic load balancing EV charger can handle this problem. It can divide the burden of the grid evenly among several EV chargers and protect the power grid from damage caused by overloading.
The dynamic load balancing EV charger can detect used power of the main circuit and adjust its charging current accordingly and automatically, allowing for energy savings to be realized.
Our design is to use the current transformer claps to detect the current of the main circuits of household, and users needs to set the max loading current when install the dynamic load balancing box via our smart life App. User also can monitoring the home loading current via the App. The dynamic load balancing box is communicating with our EV Charger wireless via LoRa 433 band, which is stable and long distance, avoiding the message lost.
You can contact us to know more about the dynamic load balance function. We are also testing the commercial use case, will be ready soon.
