Factory Price China OEM Evse 32A 3 Phase Box Wallbox EV Charger for Home

Electric Car EV Station Wallbox With App Control

Model No.: GS22 -AC-H01

GS22-AC-H01 is a WiFi-enabled 32-amp smart EV charging station with innovative design concepts to provide a premium charging experience that can be upgraded as technology changes, while providing freedom of choice, which is also a compact charging option that offers the option of a pedestal or wall mount. Affordable priced and fully customizable. (including color, colorful charging cable).

Become a dealer> Contact us

Product Detail

Product Tags

That has a positive and progressive attitude to customer’s interest, our organization consistently improves our products quality to satisfy the demands of shoppers and further focuses on safety, reliability, environmental specifications, and innovation of Factory Price China OEM Evse 32A 3 Phase Box Wallbox EV Charger for Home, Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us!
That has a positive and progressive attitude to customer’s interest, our organization consistently improves our products quality to satisfy the demands of shoppers and further focuses on safety, reliability, environmental specifications, and innovation of 22kw EV Charger Wallbox, China Type 2 EV Charger Wallbox, Customer’s satisfaction is always our quest, creating value for customers is always our duty, a long term mutual-beneficial business relationship is what we’re doing for. We have been an absolutely reliable partner for you personally in China. Of course, other services, like consulting, can be offered too.

Feature

● Wireless network connection – Intuitive mobile app and portal monitors and schedules charging.
● Smart grid savings – Schedule your charging time when electricity bills are lower, to make your electric car cheaper to drive. Eligible for many local utility rebates and incentives.
● Notice – It will notify you when your car is fully charged, set up a daily charging routine, or simply ask G.S. to remind you to plug in when your life gets too busy.
● Easy to use and install – Quick release mounting bracket and built-in cable management allow setup and daily charging breeze.

Descriptions of product

Power Supply	3P+N+PE
Charging Port	Type 2 cable
Enclosure	Plastic PC940A
LED Indicator	Yellow/ Red/ Green
LCD Display	4.3” color touch LCD
RFID Reader	Mifare ISO/ IEC 14443A
Start Mode	Plug&Play/ RFID Card/ APP
Ememergency Stop	YES
Communication	3G/4G/5G,WIFI, LAN(RJ-45), bluetooth,OCPP 1.6 OCPP 2.0 optional RCD (30mA Type A+ 6mA DC)
Electrical Protection	Over Current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/under voltage protection, Over/under frenquency protection, Over/under temperature protection.
Certification	CE, ROHS, REACH,FCC and what you need
Certification Standard	EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Installation	Wall-mount, Pole Mount

Specifications of product

Product Name	32A 22kw Charging Wallbox Ev Vehicle Charger Station
Input Rated voltage	400V AC
Input Rated Current	32A
Input Frequency	50/60HZ
Output Voltage	400V AC
Output Maximum Current	32A
Rated Power	22kw
Cable Length (M)	3.5/4/5
IP Code	IP65	Unit Size	340285147mm (HWD)
Impact Protection	IK08
Work Environment Temperature	-25℃-+50℃
Work Environment Humidity	5%-95%
Work Environment Altitude	＜2000M
Product Package Dimension	480350210 (LWH)
Net Weight	4.5kg
Gross weight	5kg
Warranty	2 Years

Advantages of product

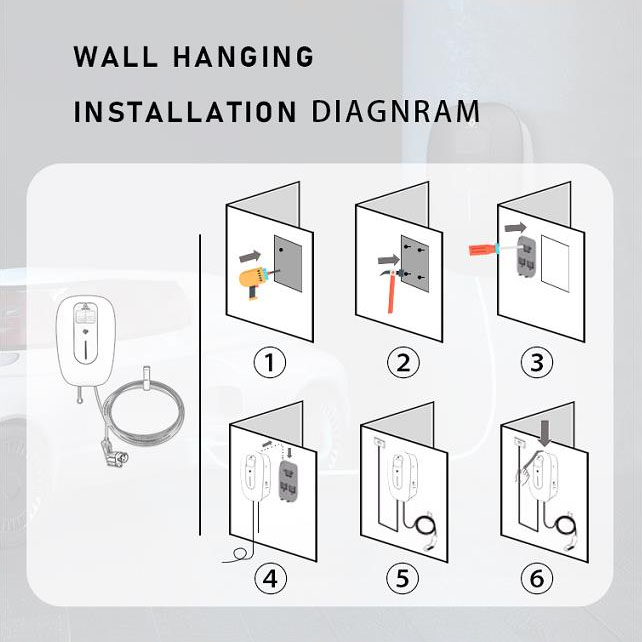

● Flexible Installation -There are three installation options to be designed(hardwire, wall mount, or pedestal mount).

APP Control 16A EV wallbox Electric Charger for Electric Car3

● Lock installation – It is safe for indoor and outdoor installation.

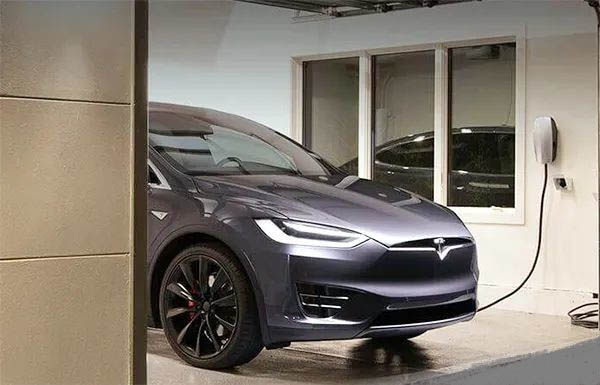

32A 22kw Charging Wallbox Ev Vehicle Charger Station

● Timed charging – It makes driving your electric car cheaper when rates are lower.
● Dynamic LED lights – Display power, connection and charging status.

TYPEB RCD(TYPE A+DC 6mA)
All DC leakage (>6mA) can be monitored and all current can be cur off instantly within 10S

Type 1 EV wallbox Charger 11kw3

● 25 ft cable – maximum free installation required

Note: The plug and cable can be separated. You can choose plug or cable only.

Type 1 EV wallbox Charger 11kw4

● Accessibility – Home use with intelligent App control, Smart charge or scheduled charge by App.

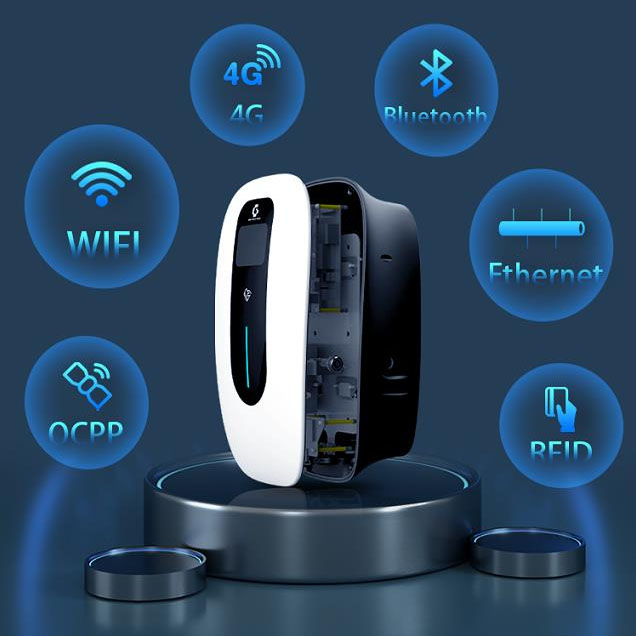

Lock installation4

Product case display

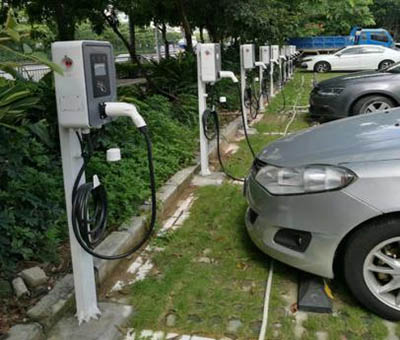

GS22 -AC-H01

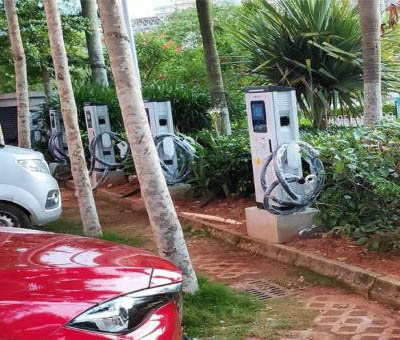

GS22 -AC-H01-1

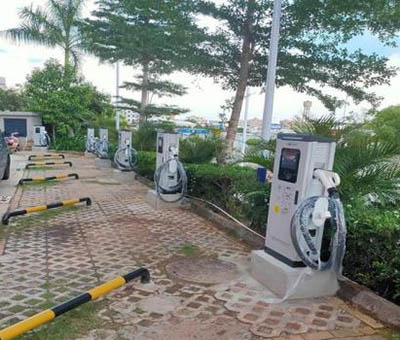

GS22 -AC-H01-2

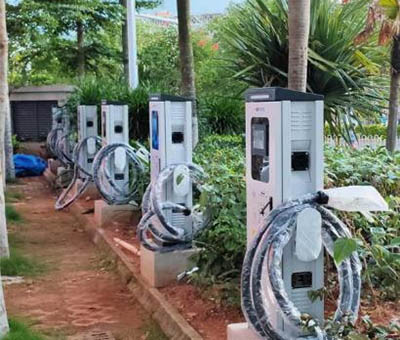

GS22 -AC-H01-3

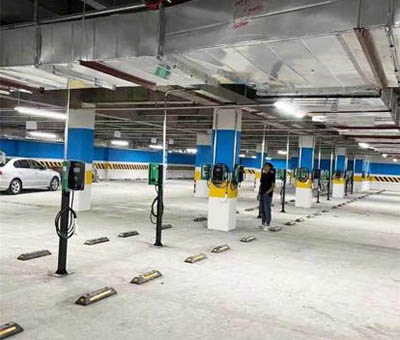

GS22 -AC-H01-5

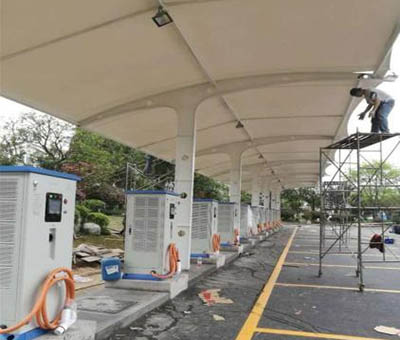

GS22 -AC-H01-4 That has a positive and progressive attitude to customer’s interest, our organization consistently improves our products quality to satisfy the demands of shoppers and further focuses on safety, reliability, environmental specifications, and innovation of Factory Price China OEM Evse 32A 3 Phase Box Wallbox EV Charger for Home, Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us!
