China OEM Tritium Ev Charger - APP Control 16A EV wallbox Electric Charger for Electric Car – Green Detail:

Feature

● GS11-AC-H01 is designed innovatively with minimal size, streamline outline.
● Wireless communication wifi/buletooth, smart charge or schedule charge by App is available.
● It provides 6mA DC residual current protection and anti welding protection, which is more secure.
● Two types of charging cable can be choosen, type 1 or type 2.

Descriptions of product

Power Supply	3P+N+PE
Charging Port	Type 2 cable
Enclosure	Plastic PC940A
LED Indicator	Yellow/ Red/ Green
LCD Display	4.3” color touch LCD
RFID Reader	Mifare ISO/ IEC 14443A
Start Mode	Plug&Play/ RFID Card/ APP
Ememergency Stop	YES
Communication	3G/4G/5G,WIFI, LAN(RJ-45), bluetooth,OCPP 1.6 OCPP 2.0 optional RCD (30mA Type A+ 6mA DC)
Electrical Protection	Over Current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/under voltage protection, Over/under frenquency protection, Over/under temperature protection.
Certification	CE, ROHS, REACH,FCC and what you need
Certification Standard	EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Installation	Wall-mount, Pole Mount

Specifications of product

Product Name	APP Control 16A EV wallbox Electric Charger for Electric Car
Input Rated voltage	400V AC
Input Rated Current	16A
Input Frequency	50/60HZ
Output Voltage	400V AC
Output Maximum Current	16A
Rated Power	11kw
Cable Length (M)	3.5/4/5
IP Code	IP65	Unit Size	340285147mm (HWD)
Impact Protection	IK08
Work Environment Temperature	-25℃-+50℃
Work Environment Humidity	5%-95%
Work Environment Altitude	＜2000M
Product Package Dimension	480350210 (LWH)
Net Weight	4.5kg
Gross weight	5kg
Warranty	2 Years

Advantages of product

● Flexible Installation -There are three installation options to be designed(hardwire, wall mount, or pedestal mount).

APP Control 16A EV wallbox Electric Charger for Electric Car3

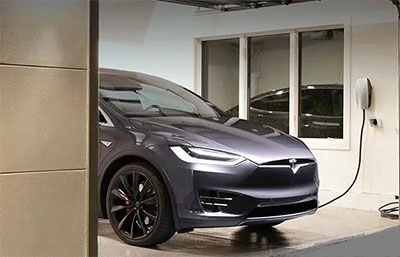

● Lock installation – It is safe for indoor and outdoor installation.

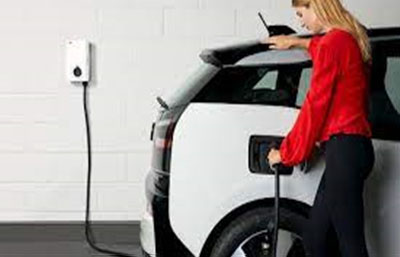

Lock installation2

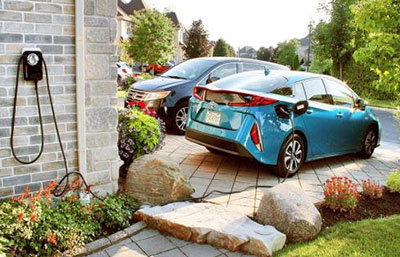

Lock installation1

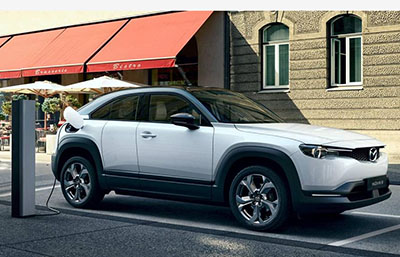

Lock installation3

● Timed charging – It makes driving your electric car cheaper when rates are lower.
● Dynamic LED lights – Display power, connection and charging status.

TYPEB RCD(TYPE A+DC 6mA)
All DC leakage (>6mA) can be monitored and all current can be cur off instantly within 10S

Type 1 EV wallbox Charger 11kw3

● 25 ft cable – maximum free installation required

Note: The plug and cable can be separated. You can choose plug or cable only.

Type 1 EV wallbox Charger 11kw4

● Accessibility – Home use with intelligent App control, Smart charge or scheduled charge by App.

Lock installation4

Product case display

Type 1 EV wallbox Charger 11kw10
